SP104Ex

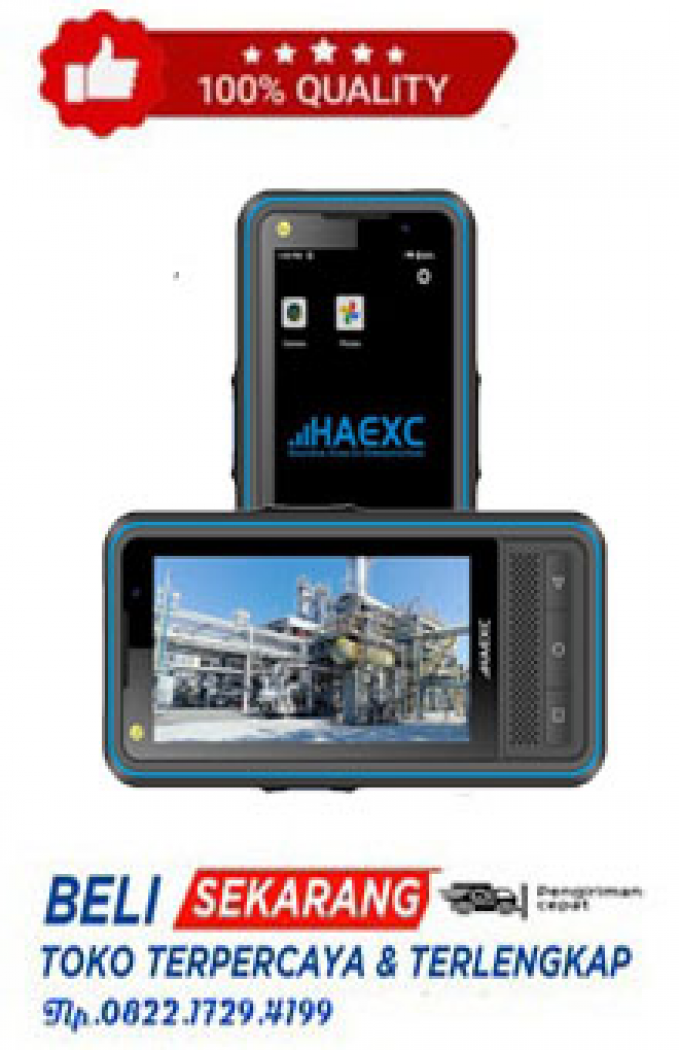

Introducing the HAEXC SP104Ex – Rugged Performance Meets Smart Mobility for Hazardous Zones

The HAEXC SP104Ex is a powerful 4G intrinsically safe smartphone designed for Zone 1/21 hazardous areas. This ATEX zone 1 phone merges industrial-grade toughness with advanced Android functionality, delivering a modern solution for high-risk environments where safety and performance cannot be compromised.

The SP104Ex is certified for explosive atmospheres under:

ATEX: II 2G Ex ib IIC T4 Gb / II 2D Ex ib IIIC T130°C Db
IECEx: Ex ib IIC T4 Gb / Ex ib IIIC T130°C Db
Approved for use in Zone 1/21 hazardous areas.

Features

Powered by Android 14 and a MediaTek Octa-Core 2.2 GHz processor, the SP104Ex supports seamless app performance and system stability. It comes equipped with 6 GB RAM and 128 GB storage, enabling smooth multitasking and ample space for mission-critical applications.

Certified by ATEX and IECEx, the SP104Ex withstands extreme temperatures (-20 °C to +55 °C) and harsh conditions with IP68 protection and 1.2m drop resistance. A powerful removable 4000mAh battery ensures long-lasting operation in the field, supported by a full set of accessories for easy deployment.

Technical Features

Operating System	Android™ 14
Processor	MediaTek 6765 Octa Core 2.2 GHz
Memory	RAM 6GB + ROM 128GB
Frequencies	LTE: B1/2/3/4/5/7/8/18/19/20/26/28a&b/34/38/3940/41 WCDMA: B1/5/8 GSM: 850/900/1800/1900
Dimensions	148 x 70.5 x 25 (mm), 325g
Display	4.0” LCD, 540×1080(VGA), Multi-Point Capacitive Gorilla Glass (Impact & Scratch Resistance), Support Glove Mode
Battery	Li-Ion, 4000mAh, Replaceable
Camera	8MP Front Camera 50MP Rear Camera (Auto Focus)
Connectivity	Dual SIM (Nano), VoLTE Wi-Fi 802.11 ac/a/b/g/n. Dual Wi-Fi 2.4 GHz & 5 GHz Bluetooth 5.1 (Bluetooth Low Energy) GPS/A-GPS/BeiDou/GLONASS/Galileo NFC (Near Field Communication) Type-C USB
Degree of Protection	IP68 (Water & Dust), Drop Test 1.2 m Ta = -20 °C to +55 °C

Datasheet

Additional Features

With a vibrant 4.0” Gorilla Glass touchscreen, support for glove mode, and dedicated PTT/SOS/FN keys, the SP104Ex is purpose-built for field communication. Enhanced by Bluetooth 5.1, dual-band Wi-Fi, NFC, and GNSS positioning (GPS, GLONASS, BeiDou, Galileo), it ensures complete connectivity even in remote areas.

Featuring a high-resolution 50 MP rear camera, AI noise reduction microphones, and waterproof speaker, this ex proof phone empowers workers with smarter, safer communication.
